I had implemented the UUPS version for 0.7.6 and all the below files mentioned are used by me at the time of development for UUPS.
As per the implementation suggested I have included the _authorizeUpgrade function in my implementation contract and made the UUPSUpgradable contract and its helper contracts
When I am deploying the code with Hardhat upgrades and making the kind feature for uups to be on.
await upgrades.deployProxy(factory, args, {
initializer: initializerSignature,
kind: "uups"
})
I got the below Error:
My queries and open points are:
- Did we can't deploy the UUPS for version 0.7.6 from the HardHat Upgrade plugin? If yes then Why?
- If we can deploy the UUPS for version 0.7.6 then what all things do we have to do?
- If my UUPS implementation is not correct then please help me to understand where I am lagging behind.
Code to reproduce

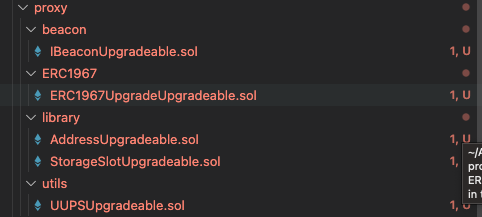

Directory snippet for my 0.7.6 version implementation of OpenZeppline
-
IBeaconUpgradeable.sol
// SPDX-License-Identifier: MIT
pragma solidity 0.7.6;
/**
* @dev This is the interface that {BeaconProxy} expects of its beacon.
*/
interface IBeaconUpgradeable {
/**
* @dev Must return an address that can be used as a delegate call target.
*
* {BeaconProxy} will check that this address is a contract.
*/
function implementation() external view returns (address);
}
ERC1976UpgradeUpgradeable.sol
// SPDX-License-Identifier: MIT
pragma solidity 0.7.6;
import "../beacon/IBeaconUpgradeable.sol";
import "../library/StorageSlotUpgradeable.sol";
import "@openzeppelin/contracts-upgradeable/proxy/Initializable.sol";
/**
* @dev This abstract contract provides getters and event emitting update functions for
* https://eips.ethereum.org/EIPS/eip-1967[EIP1967] slots.
*
*/
abstract contract ERC1967UpgradeUpgradeable is Initializable {
function __ERC1967Upgrade_init() internal initializer {
__ERC1967Upgrade_init_unchained();
}
function __ERC1967Upgrade_init_unchained() internal initializer {
}
// This is the keccak-256 hash of "eip1967.proxy.rollback" subtracted by 1
bytes32 private constant _ROLLBACK_SLOT = 0x4910fdfa16fed3260ed0e7147f7cc6da11a60208b5b9406d12a635614ffd9143;
/**
* @dev Storage slot with the address of the current implementation.
* This is the keccak-256 hash of "eip1967.proxy.implementation" subtracted by 1, and is
* validated in the constructor.
*/
bytes32 internal constant _IMPLEMENTATION_SLOT = 0x360894a13ba1a3210667c828492db98dca3e2076cc3735a920a3ca505d382bbc;
/**
* @dev Emitted when the implementation is upgraded.
*/
event Upgraded(address indexed implementation);
/**
* @dev Returns the current implementation address.
*/
function _getImplementation() internal view returns (address) {
return StorageSlotUpgradeable.getAddressSlot(_IMPLEMENTATION_SLOT).value;
}
/**
* @dev Stores a new address in the EIP1967 implementation slot.
*/
function _setImplementation(address newImplementation) private {
require(AddressUpgradeable.isContract(newImplementation), "ERC1967: new implementation is not a contract");
StorageSlotUpgradeable.getAddressSlot(_IMPLEMENTATION_SLOT).value = newImplementation;
}
/**
* @dev Perform implementation upgrade
*
* Emits an {Upgraded} event.
*/
function _upgradeTo(address newImplementation) internal {
_setImplementation(newImplementation);
emit Upgraded(newImplementation);
}
/**
* @dev Perform implementation upgrade with additional setup call.
*
* Emits an {Upgraded} event.
*/
function _upgradeToAndCall(
address newImplementation,
bytes memory data,
bool forceCall
) internal {
_upgradeTo(newImplementation);
if (data.length > 0 || forceCall) {
_functionDelegateCall(newImplementation, data);
}
}
/**
* @dev Perform implementation upgrade with security checks for UUPS proxies, and additional setup call.
*
* Emits an {Upgraded} event.
*/
function _upgradeToAndCallSecure(
address newImplementation,
bytes memory data,
bool forceCall
) internal {
address oldImplementation = _getImplementation();
// Initial upgrade and setup call
_setImplementation(newImplementation);
if (data.length > 0 || forceCall) {
_functionDelegateCall(newImplementation, data);
}
// Perform rollback test if not already in progress
StorageSlotUpgradeable.BooleanSlot storage rollbackTesting = StorageSlotUpgradeable.getBooleanSlot(_ROLLBACK_SLOT);
if (!rollbackTesting.value) {
// Trigger rollback using upgradeTo from the new implementation
rollbackTesting.value = true;
_functionDelegateCall(
newImplementation,
abi.encodeWithSignature("upgradeTo(address)", oldImplementation)
);
rollbackTesting.value = false;
// Check rollback was effective
require(oldImplementation == _getImplementation(), "ERC1967Upgrade: upgrade breaks further upgrades");
// Finally reset to the new implementation and log the upgrade
_upgradeTo(newImplementation);
}
}
/**
* @dev Storage slot with the admin of the contract.
* This is the keccak-256 hash of "eip1967.proxy.admin" subtracted by 1, and is
* validated in the constructor.
*/
bytes32 internal constant _ADMIN_SLOT = 0xb53127684a568b3173ae13b9f8a6016e243e63b6e8ee1178d6a717850b5d6103;
/**
* @dev Emitted when the admin account has changed.
*/
event AdminChanged(address previousAdmin, address newAdmin);
/**
* @dev Returns the current admin.
*/
function _getAdmin() internal view returns (address) {
return StorageSlotUpgradeable.getAddressSlot(_ADMIN_SLOT).value;
}
/**
* @dev Stores a new address in the EIP1967 admin slot.
*/
function _setAdmin(address newAdmin) private {
require(newAdmin != address(0), "ERC1967: new admin is the zero address");
StorageSlotUpgradeable.getAddressSlot(_ADMIN_SLOT).value = newAdmin;
}
/**
* @dev Changes the admin of the proxy.
*
* Emits an {AdminChanged} event.
*/
function _changeAdmin(address newAdmin) internal {
emit AdminChanged(_getAdmin(), newAdmin);
_setAdmin(newAdmin);
}
/**
* @dev The storage slot of the UpgradeableBeacon contract which defines the implementation for this proxy.
* This is bytes32(uint256(keccak256('eip1967.proxy.beacon')) - 1)) and is validated in the constructor.
*/
bytes32 internal constant _BEACON_SLOT = 0xa3f0ad74e5423aebfd80d3ef4346578335a9a72aeaee59ff6cb3582b35133d50;
/**
* @dev Emitted when the beacon is upgraded.
*/
event BeaconUpgraded(address indexed beacon);
/**
* @dev Returns the current beacon.
*/
function _getBeacon() internal view returns (address) {
return StorageSlotUpgradeable.getAddressSlot(_BEACON_SLOT).value;
}
/**
* @dev Stores a new beacon in the EIP1967 beacon slot.
*/
function _setBeacon(address newBeacon) private {
require(AddressUpgradeable.isContract(newBeacon), "ERC1967: new beacon is not a contract");
require(
AddressUpgradeable.isContract(IBeaconUpgradeable(newBeacon).implementation()),
"ERC1967: beacon implementation is not a contract"
);
StorageSlotUpgradeable.getAddressSlot(_BEACON_SLOT).value = newBeacon;
}
/**
* @dev Perform beacon upgrade with additional setup call. Note: This upgrades the address of the beacon, it does
* not upgrade the implementation contained in the beacon (see {UpgradeableBeacon-_setImplementation} for that).
*
* Emits a {BeaconUpgraded} event.
*/
function _upgradeBeaconToAndCall(
address newBeacon,
bytes memory data,
bool forceCall
) internal {
_setBeacon(newBeacon);
emit BeaconUpgraded(newBeacon);
if (data.length > 0 || forceCall) {
_functionDelegateCall(IBeaconUpgradeable(newBeacon).implementation(), data);
}
}
/**
* @dev Same as {xref-Address-functionCall-address-bytes-string-}[`functionCall`],
* but performing a delegate call.
*/
function verifyCallResult(bool success, bytes memory returndata, string memory errorMessage) private pure returns(bytes memory) {
if (success) {
return returndata;
} else {
// Look for revert reason and bubble it up if present
if (returndata.length > 0) {
// The easiest way to bubble the revert reason is using memory via assembly
// solhint-disable-next-line no-inline-assembly
assembly {
let returndata_size := mload(returndata)
revert(add(32, returndata), returndata_size)
}
} else {
revert(errorMessage);
}
}
}
function _functionDelegateCall(address target, bytes memory data) private returns (bytes memory) {
require(AddressUpgradeable.isContract(target), "Address: delegate call to non-contract");
// solhint-disable-next-line avoid-low-level-calls
(bool success, bytes memory returndata) = target.delegatecall(data);
return verifyCallResult(success, returndata, "Address: low-level delegate call failed");
}
uint256[50] private __gap;
}
Address.Upgradeable.sol
// SPDX-License-Identifier: MIT
pragma solidity 0.7.6;
/**
* @dev Collection of functions related to the address type
*/
library AddressUpgradeable {
/**
* @dev Returns true if `account` is a contract.
*
* [IMPORTANT]
* ====
* It is unsafe to assume that an address for which this function returns
* false is an externally-owned account (EOA) and not a contract.
*
* Among others, `isContract` will return false for the following
* types of addresses:
*
* - an externally-owned account
* - a contract in construction
* - an address where a contract will be created
* - an address where a contract lived, but was destroyed
* ====
*/
function isContract(address account) internal view returns (bool) {
// This method relies on extcodesize, which returns 0 for contracts in
// construction, since the code is only stored at the end of the
// constructor execution.
uint256 size;
assembly {
size := extcodesize(account)
}
return size > 0;
}
/**
* @dev Replacement for Solidity's `transfer`: sends `amount` wei to
* `recipient`, forwarding all available gas and reverting on errors.
*
* https://eips.ethereum.org/EIPS/eip-1884[EIP1884] increases the gas cost
* of certain opcodes, possibly making contracts go over the 2300 gas limit
* imposed by `transfer`, making them unable to receive funds via
* `transfer`. {sendValue} removes this limitation.
*
* https://diligence.consensys.net/posts/2019/09/stop-using-soliditys-transfer-now/[Learn more].
*
* IMPORTANT: because control is transferred to `recipient`, care must be
* taken to not create reentrancy vulnerabilities. Consider using
* {ReentrancyGuard} or the
* https://solidity.readthedocs.io/en/v0.5.11/security-considerations.html#use-the-checks-effects-interactions-pattern[checks-effects-interactions pattern].
*/
function sendValue(address payable recipient, uint256 amount) internal {
require(address(this).balance >= amount, "Address: insufficient balance");
(bool success, ) = recipient.call{value: amount}("");
require(success, "Address: unable to send value, recipient may have reverted");
}
/**
* @dev Performs a Solidity function call using a low level `call`. A
* plain `call` is an unsafe replacement for a function call: use this
* function instead.
*
* If `target` reverts with a revert reason, it is bubbled up by this
* function (like regular Solidity function calls).
*
* Returns the raw returned data. To convert to the expected return value,
* use https://solidity.readthedocs.io/en/latest/units-and-global-variables.html?highlight=abi.decode#abi-encoding-and-decoding-functions[`abi.decode`].
*
* Requirements:
*
* - `target` must be a contract.
* - calling `target` with `data` must not revert.
*
*/
function functionCall(address target, bytes memory data) internal returns (bytes memory) {
return functionCall(target, data, "Address: low-level call failed");
}
/**
* @dev Same as {xref-Address-functionCall-address-bytes-}[`functionCall`], but with
* `errorMessage` as a fallback revert reason when `target` reverts.
*
*/
function functionCall(
address target,
bytes memory data,
string memory errorMessage
) internal returns (bytes memory) {
return functionCallWithValue(target, data, 0, errorMessage);
}
/**
* @dev Same as {xref-Address-functionCall-address-bytes-}[`functionCall`],
* but also transferring `value` wei to `target`.
*
* Requirements:
*
* - the calling contract must have an ETH balance of at least `value`.
* - the called Solidity function must be `payable`.
*
*/
function functionCallWithValue(
address target,
bytes memory data,
uint256 value
) internal returns (bytes memory) {
return functionCallWithValue(target, data, value, "Address: low-level call with value failed");
}
/**
* @dev Same as {xref-Address-functionCallWithValue-address-bytes-uint256-}[`functionCallWithValue`], but
* with `errorMessage` as a fallback revert reason when `target` reverts.
*
*/
function functionCallWithValue(
address target,
bytes memory data,
uint256 value,
string memory errorMessage
) internal returns (bytes memory) {
require(address(this).balance >= value, "Address: insufficient balance for call");
require(isContract(target), "Address: call to non-contract");
(bool success, bytes memory returndata) = target.call{value: value}(data);
return verifyCallResult(success, returndata, errorMessage);
}
/**
* @dev Same as {xref-Address-functionCall-address-bytes-}[`functionCall`],
* but performing a static call.
*
*/
function functionStaticCall(address target, bytes memory data) internal view returns (bytes memory) {
return functionStaticCall(target, data, "Address: low-level static call failed");
}
/**
* @dev Same as {xref-Address-functionCall-address-bytes-string-}[`functionCall`],
* but performing a static call.
*
*/
function functionStaticCall(
address target,
bytes memory data,
string memory errorMessage
) internal view returns (bytes memory) {
require(isContract(target), "Address: static call to non-contract");
(bool success, bytes memory returndata) = target.staticcall(data);
return verifyCallResult(success, returndata, errorMessage);
}
/**
* @dev Tool to verifies that a low level call was successful, and revert if it wasn't, either by bubbling the
* revert reason using the provided one.
*
*/
function verifyCallResult(
bool success,
bytes memory returndata,
string memory errorMessage
) internal pure returns (bytes memory) {
if (success) {
return returndata;
} else {
// Look for revert reason and bubble it up if present
if (returndata.length > 0) {
// The easiest way to bubble the revert reason is using memory via assembly
assembly {
let returndata_size := mload(returndata)
revert(add(32, returndata), returndata_size)
}
} else {
revert(errorMessage);
}
}
}
}
StorageSlotUpgradeable.sol
// SPDX-License-Identifier: MIT
pragma solidity 0.7.6;
/**
* @dev Library for reading and writing primitive types to specific storage slots.
*
* Storage slots are often used to avoid storage conflict when dealing with upgradeable contracts.
* This library helps with reading and writing to such slots without the need for inline assembly.
*
* The functions in this library return Slot structs that contain a `value` member that can be used to read or write.
*
* Example usage to set ERC1967 implementation slot:
* ```
* contract ERC1967 {
* bytes32 internal constant _IMPLEMENTATION_SLOT = 0x360894a13ba1a3210667c828492db98dca3e2076cc3735a920a3ca505d382bbc;
*
* function _getImplementation() internal view returns (address) {
* return StorageSlot.getAddressSlot(_IMPLEMENTATION_SLOT).value;
* }
*
* function _setImplementation(address newImplementation) internal {
* require(Address.isContract(newImplementation), "ERC1967: new implementation is not a contract");
* StorageSlot.getAddressSlot(_IMPLEMENTATION_SLOT).value = newImplementation;
* }
* }
* ```
*/
library StorageSlotUpgradeable {
struct AddressSlot {
address value;
}
struct BooleanSlot {
bool value;
}
struct Bytes32Slot {
bytes32 value;
}
struct Uint256Slot {
uint256 value;
}
/**
* @dev Returns an `AddressSlot` with member `value` located at `slot`.
*/
function getAddressSlot(bytes32 slot) internal pure returns (AddressSlot storage r) {
assembly {
r.slot := slot
}
}
/**
* @dev Returns an `BooleanSlot` with member `value` located at `slot`.
*/
function getBooleanSlot(bytes32 slot) internal pure returns (BooleanSlot storage r) {
assembly {
r.slot := slot
}
}
/**
* @dev Returns an `Bytes32Slot` with member `value` located at `slot`.
*/
function getBytes32Slot(bytes32 slot) internal pure returns (Bytes32Slot storage r) {
assembly {
r.slot := slot
}
}
/**
* @dev Returns an `Uint256Slot` with member `value` located at `slot`.
*/
function getUint256Slot(bytes32 slot) internal pure returns (Uint256Slot storage r) {
assembly {
r.slot := slot
}
}
}
UUPSUpgradeable.sol
// SPDX-License-Identifier: MIT
pragma solidity 0.7.6;
import "../ERC1967/ERC1967UpgradeUpgradeable.sol";
import "@openzeppelin/contracts-upgradeable/proxy/Initializable.sol";
/**
* @dev An upgradeability mechanism designed for UUPS proxies. The functions included here can perform an upgrade of an
* {ERC1967Proxy}, when this contract is set as the implementation behind such a proxy.
*
* A security mechanism ensures that an upgrade does not turn off upgradeability accidentally, although this risk is
* reinstated if the upgrade retains upgradeability but removes the security mechanism, e.g. by replacing
* `UUPSUpgradeable` with a custom implementation of upgrades.
*
* The {_authorizeUpgrade} function must be overridden to include access restriction to the upgrade mechanism.
*
*/
abstract contract UUPSUpgradeable is Initializable, ERC1967UpgradeUpgradeable {
function __UUPSUpgradeable_init() internal initializer {
__ERC1967Upgrade_init_unchained();
__UUPSUpgradeable_init_unchained();
}
function __UUPSUpgradeable_init_unchained() internal initializer {
}
/**
* @dev Upgrade the implementation of the proxy to `newImplementation`.
*
* Calls {_authorizeUpgrade}.
*
* Emits an {Upgraded} event.
*/
function upgradeTo(address newImplementation) external virtual {
_authorizeUpgrade(newImplementation);
_upgradeToAndCallSecure(newImplementation, new bytes(0), false);
}
/**
* @dev Upgrade the implementation of the proxy to `newImplementation`, and subsequently execute the function call
* encoded in `data`.
*
* Calls {_authorizeUpgrade}.
*
* Emits an {Upgraded} event.
*/
function upgradeToAndCall(address newImplementation, bytes memory data) external payable virtual {
_authorizeUpgrade(newImplementation);
_upgradeToAndCallSecure(newImplementation, data, true);
}
/**
* @dev Function that should revert when `msg.sender` is not authorized to upgrade the contract. Called by
* {upgradeTo} and {upgradeToAndCall}.
*
* Normally, this function will use an xref:access.adoc[access control] modifier such as {Ownable-onlyOwner}.
*
* ```solidity
* function _authorizeUpgrade(address) internal override onlyOwner {}
* ```
*/
function _authorizeUpgrade(address newImplementation) internal virtual;
uint256[50] private __gap;
}
Environment
I am using HardHat
below are my dependencies
"dependencies": {
"@openzeppelin/cli": "^2.8.2",
"@openzeppelin/contracts": "^3.4.2",
"@openzeppelin/contracts-upgradeable": "^3.3.0",
"@openzeppelin/test-helpers": "^0.5.7",
"@uniswap/v2-periphery": "^1.1.0-beta.0",
"dotenv": "^8.2.0",
"ganache-cli": "^6.12.0",
"hardhat-contract-sizer": "^2.0.3",
"mocha": "^8.2.0",
"solidity-docgen": "^0.5.11",
"truffle": "^5.1.53",
"truffle-contract-size": "^2.0.1",
"truffle-hdwallet-provider": "^1.0.17"
}
"devDependencies": {
"@nomiclabs/hardhat-ethers": "^2.0.2",
"@nomiclabs/hardhat-etherscan": "^2.1.1",
"@nomiclabs/hardhat-waffle": "^2.0.1",
"@openzeppelin/hardhat-upgrades": "^1.10.0",
"@openzeppelin/test-environment": "0.1.5",
"@truffle/hdwallet-provider": "^1.1.0",
"@typechain/ethers-v5": "^6.0.5",
"@types/chai": "^4.2.15",
"@types/mocha": "^8.2.2",
"@types/node": "^14.14.35",
"chai": "^4.3.4",
"coveralls": "^3.1.0",
"ethereum-waffle": "^3.2.2",
"ethers": "^5.0.26",
"hardhat": "^2.1.2",
"hardhat-deploy": "^0.7.5",
"hardhat-gas-reporter": "^1.0.4",
"husky": "^4.3.8",
"prettier": "^2.2.1",
"prettier-plugin-solidity": "^1.0.0-beta.2",
"solc-0.7": "npm:solc@^0.7.6",
"solidity-coverage": "^0.7.14",
"ts-generator": "^0.1.1",
"ts-mocha": "^8.0.0",
"ts-node": "^9.1.1",
"typechain": "^4.0.3",
"typescript": "^4.2.3"
}
